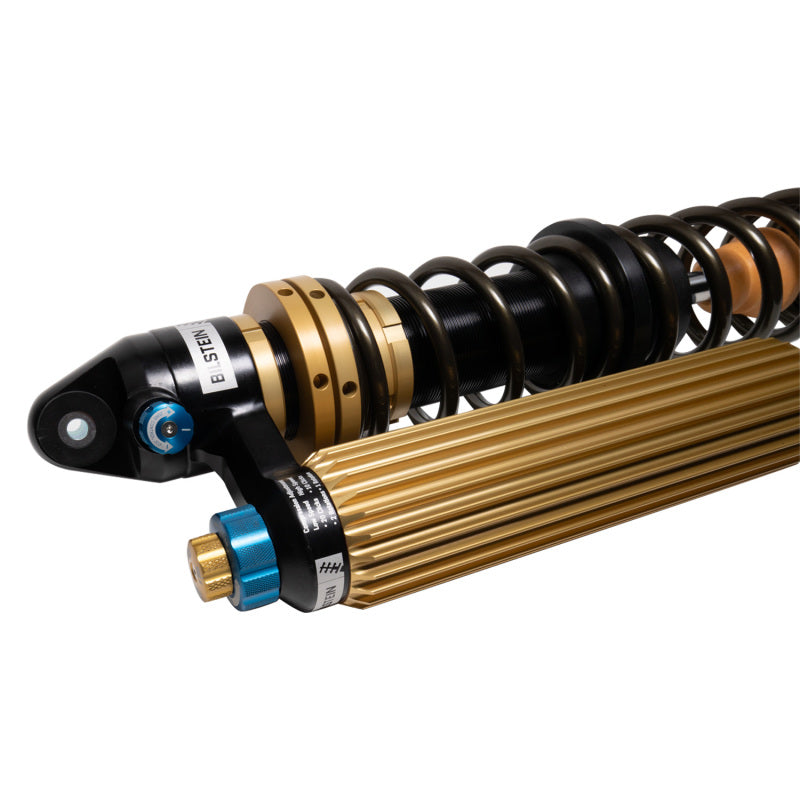

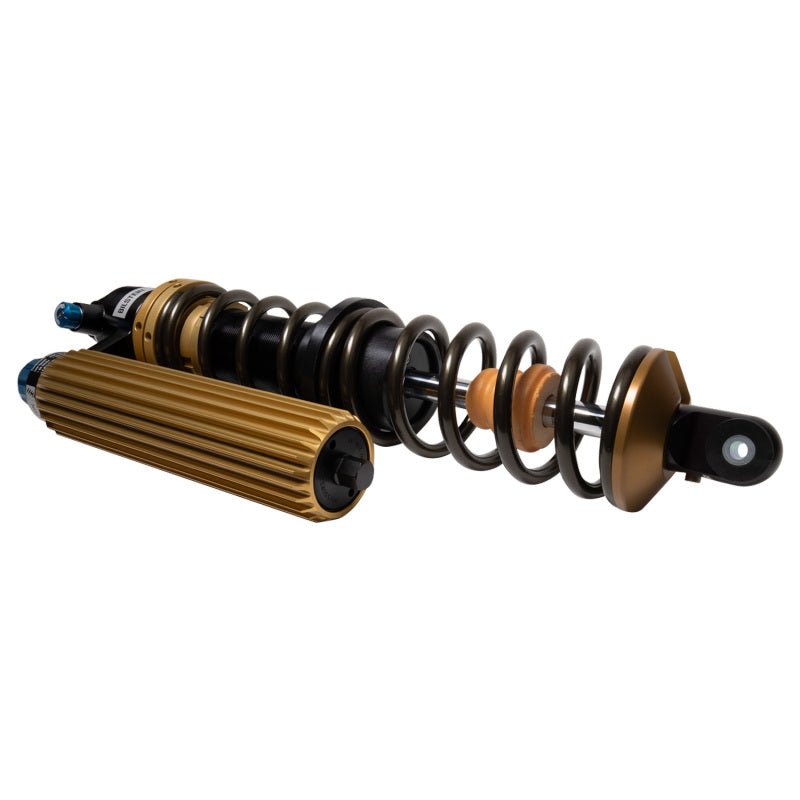

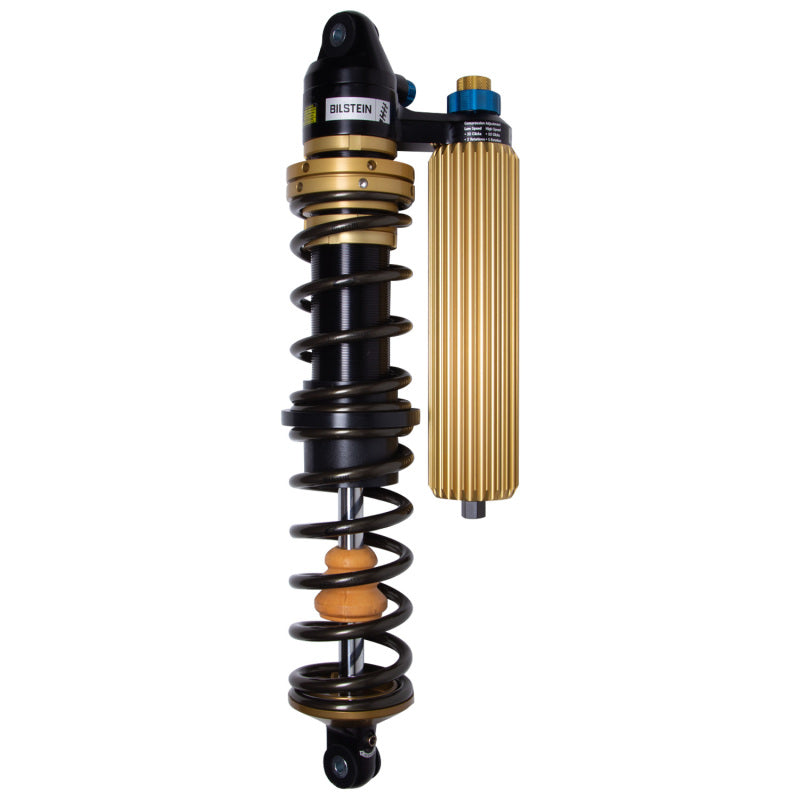

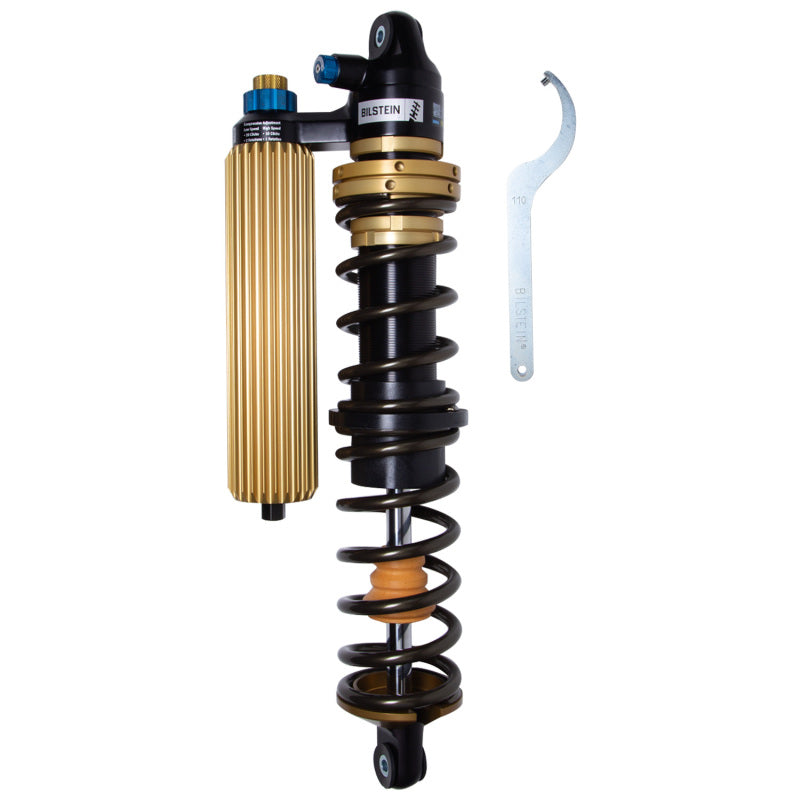

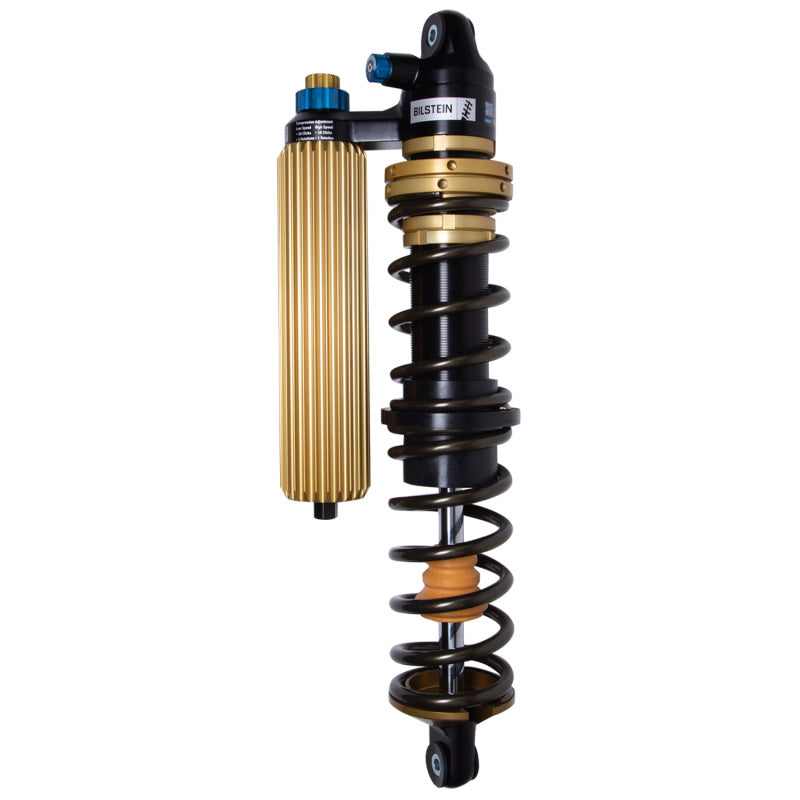

Bilstein 20-21 Polaris RZR XP 1000 Black Hawk Powersports Shock & Coil Spring Assembly - Front Left

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

Features and Benefits

Direct Fit Motorsports Package

4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound

Zone Control CR - Position Sensitive Damping

Specifications

• Segment: Motorsports
• Title: Bilstein Shock Absorbers
• Reservoir: Yes
• Model: RZR XP 1000
• Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
• Lower Mount Type: Eye 12mm (ID)
• Internal Design: Monotube
• Extended Length (IN): 24.70
• Compression @0.52m/s: Adjustable
• Body Design: Threaded Body
• Series: Black Hawk Powersports
• PartType: Shocks / Struts
• Extended Length (MM): 627.3
• Collapsed Length (MM): 432.0
• Finish: Type III Hard Anodized
• Billet Reservoir Clamp Included: Yes
• Make: Polaris
• Upper Mount Type: Eye 12mm (ID)
• Rebound @0.52m/s: Adjustable
• Position: Front Left
• Body Material: Aluminum alloy
• Collapsed Length (IN): 17.01
• Boot Included: No
• Prop 65 (Y/N): Y
• Prop 65 - Short Label: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Fitment

• 2020-2021 Polaris RZR XP 1000
• 2014-2019 Polaris RZR XP 1000 EPS
• 2019 Polaris RZR XP 1000 EPS DYNAMIX Edition
• 2017-2019 Polaris RZR XP 1000 EPS High Lifter Edition
• 2018-2019 Polaris RZR XP 1000 EPS Ride Command Edition
• 2022 Polaris RZR XP 1000 High Lifter
• 2020-2021 Polaris RZR XP 1000 High Lifter Edition
• 2020 Polaris RZR XP 1000 Limited Edition
• 2020-2024 Polaris RZR XP 1000 Premium
• 2022-2024 Polaris RZR XP 1000 Sport
• 2023-2024 Polaris RZR XP 1000 Ultimate
• 2020-2021 Polaris RZR XP Turbo
• 2016-2019 Polaris RZR XP Turbo EPS
• 2018-2019 Polaris RZR XP Turbo EPS DYNAMIX Edition
• 2018 Polaris RZR XP Turbo EPS Fox Edition
• 2019 Polaris RZR XP Turbo EPS LE

Fits these machines:

• Polaris RZR XP 1000 (2014-2023)
• Polaris RZR XP 1000 (2024+)
• Polaris RZR XP Turbo

Genuine Bilstein part (MPN 41-327845), shipped direct from the distributor or manufacturer with full manufacturer warranty. Confirm your year, make and model before ordering.
