VIPER Elite 4000 ATV/UTV Winch - 40ft GREEN Rope
$349.99
Skip to product information

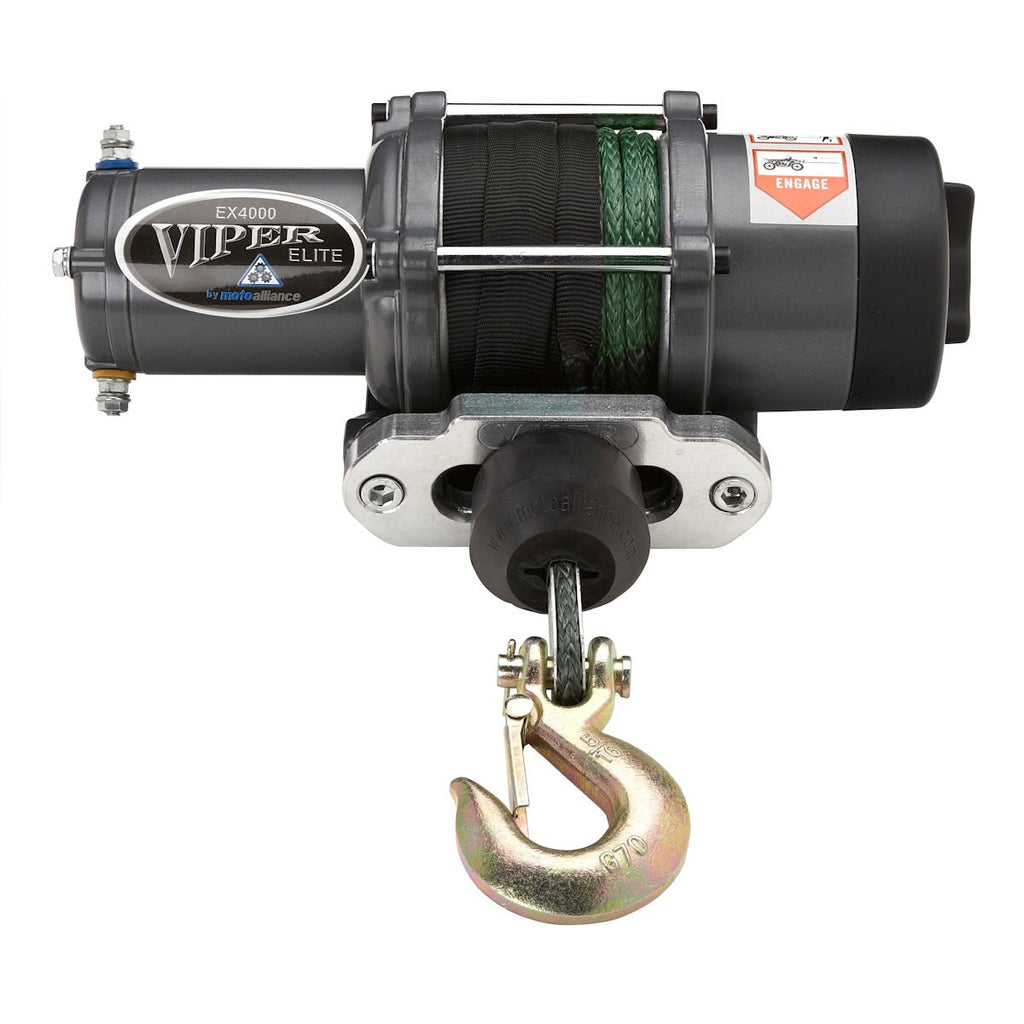

The VIPER Elite 4,000lb Winch is a durable winch for ATVs, UTVs and Side by Sides. VIPER Elite winches also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in a ISO/TS 16949 Facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATV and UTVs. The VIPER Elite has a sealed planetary metal gear train, a 1.6 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Waterproof handle bar switch, wireless remote switch and synthetic rope are standard on this Elite winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Kit Contents:
Specs
- Cable - 40' x 1/4" GREEN AmSteel-Blue Synthetic Rope

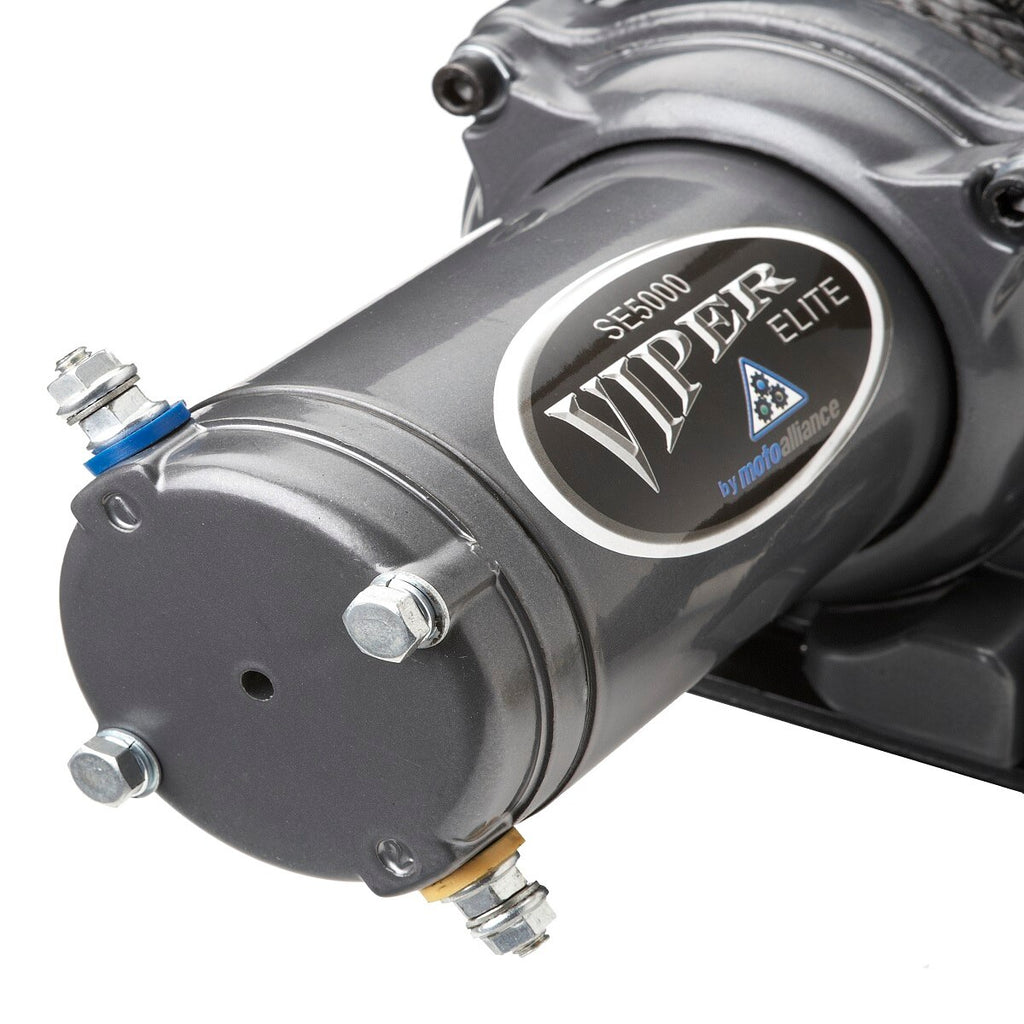

- Motor - 12V DC, Sealed 1.6HP permanent magnet
- Rated Line Pull - 4,000lbs (1814.37 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 24 FPM (7.92 MPM)
- Line Speed - 4,000lbs - 308 Amps motor draw / 4 FPM (1.22 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding

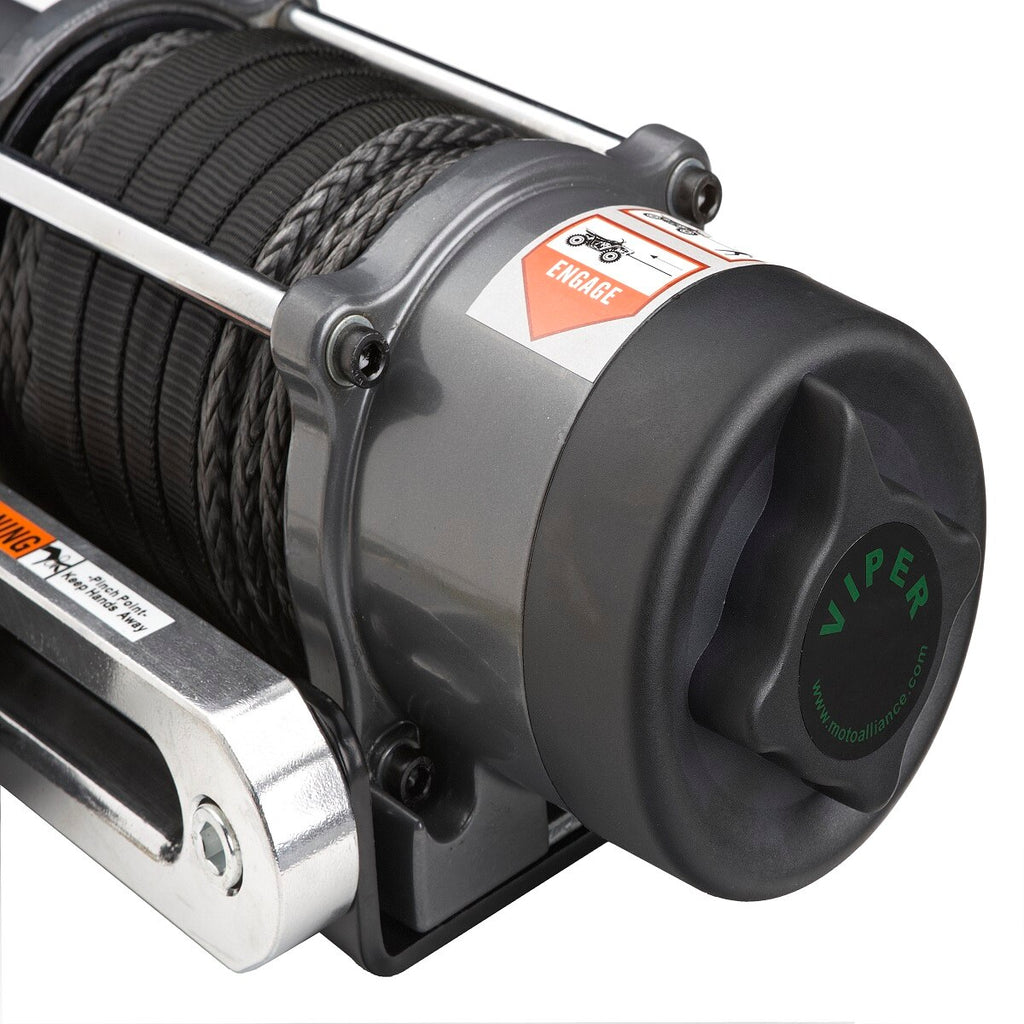

- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- Limited Lifetime Warranty (winch) / Rope (1 year)
Moto Alliance
VIPER Elite 4000 ATV/UTV Winch - 40ft GREEN Rope
$349.99
MA-EX4000-GR40-
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.

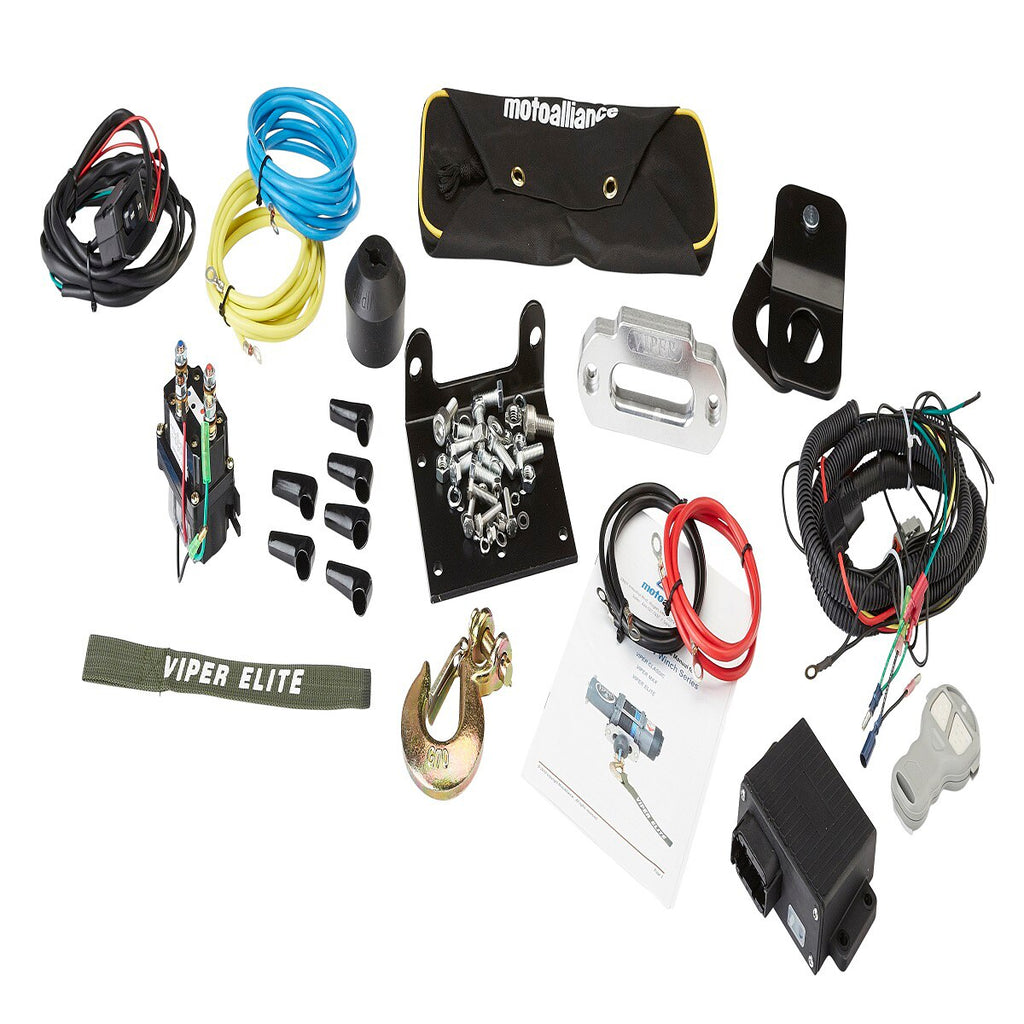

Kit Contents:
- - 40′ x ¼″ diameter AmSteel-Blue Synthetic Cable

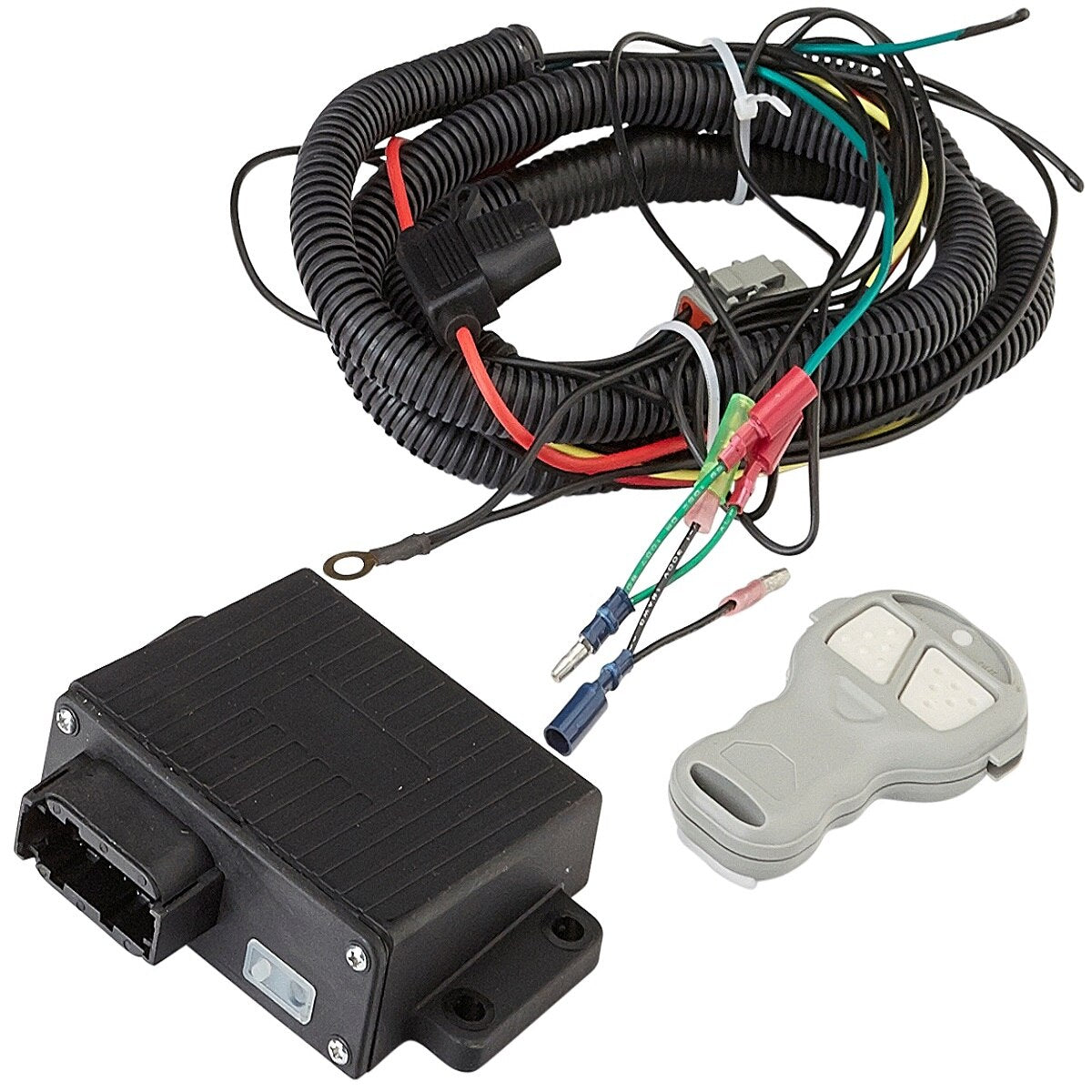

- - Wireless Remote Switch (weather resistant)
- - Rocker Handlebar Switch

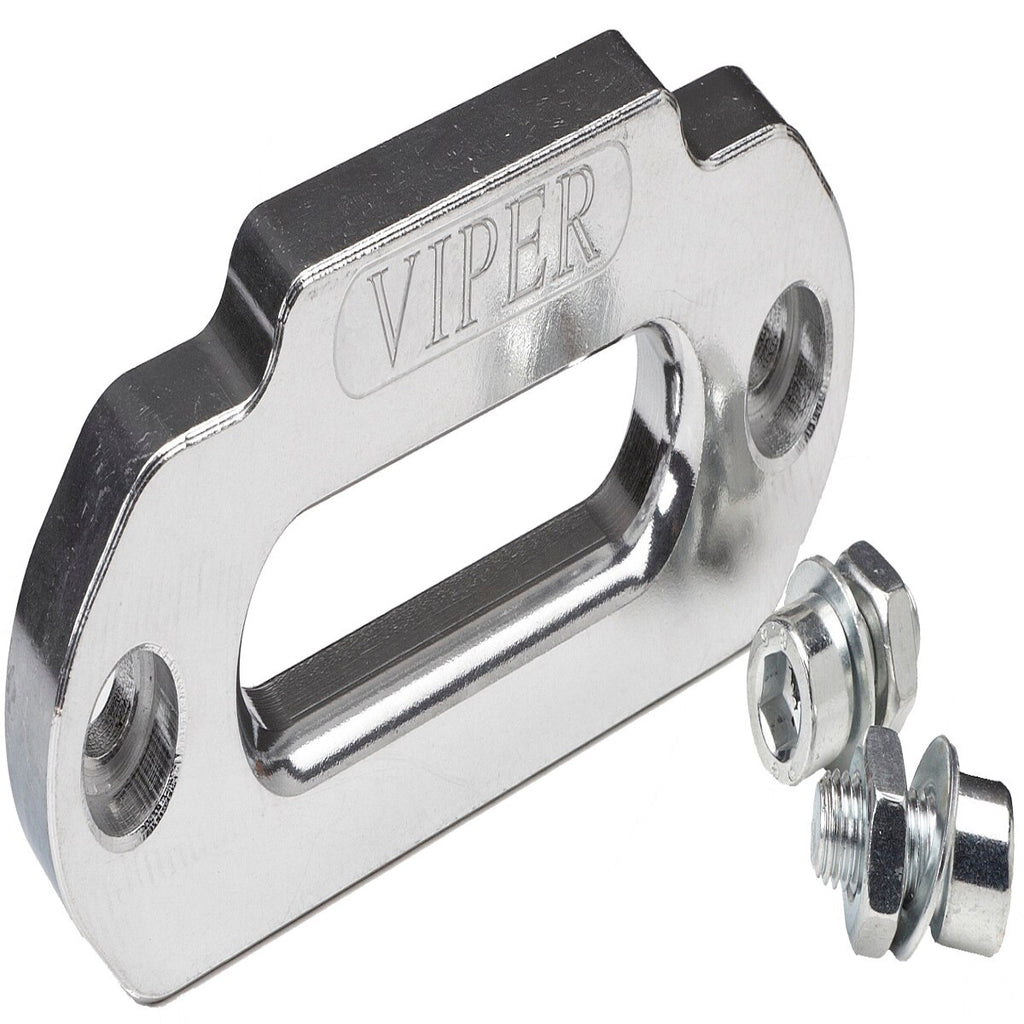

- - Aluminum Hawse Fairlead
- - 4T Snatch Block
- - Clevis Hook

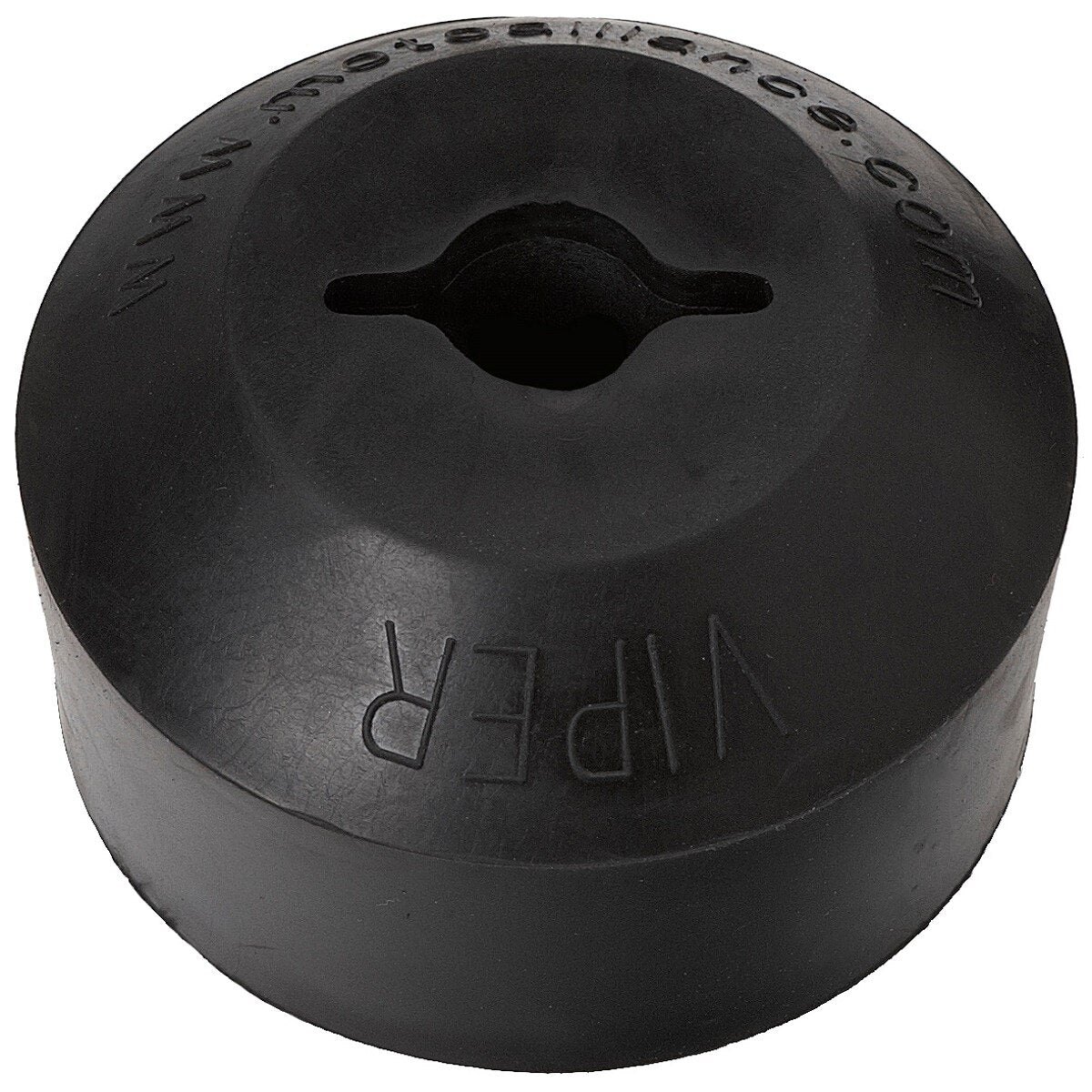

- - Rubber Line Stopper
- - Contactor & Wiring
- - Waterproof Winch Cover
- - Hand Saver Strap
- - Installation Hardware and Instructions
Specs
- Cable - 40' x 1/4" GREEN AmSteel-Blue Synthetic Rope
- Motor - 12V DC, Sealed 1.6HP permanent magnet
- Rated Line Pull - 4,000lbs (1814.37 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 24 FPM (7.92 MPM)
- Line Speed - 4,000lbs - 308 Amps motor draw / 4 FPM (1.22 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- Limited Lifetime Warranty (winch) / Rope (1 year)
Fitment
Universal ATV/UTV part. Check the specifications above against your machine.
Ships direct from Moto Alliance with their warranty. Confirm your year, make and model before ordering.
