MTX UNI-1 Amplifier and Roll Cage Speaker Kit

All-in-One Kit for Awesome Sound
Looking for an all-in-one kit to pump your jams out on the trail? We’ve got just what you need: MTX’s UNI-1-ADDON or UNI-1-AUX Amplifier and Roll Cage Speaker Kit. It fits all tubes between 1.75” and 2”, making it nearly universal. This kit comes with an MTX MUD100-2 amplifier, two or four 6.5” speaker pods, and all the wiring you need. This kit is compatible with any source—you can choose between RCA, 3.5 mm headphone jack, or Bluetooth connections. Whether you’re cruising in a Jeep, UTV, or another machine, these speakers will have everybody rocking and rolling with you.

Bluetooth Optional
Take control of your sound with MTX’s AWBTC Bluetooth controller. It pairs automatically with your phone or other bluetooth device, so you can get connected and start streaming your music in seconds. The backlit buttons make it easy to see, and the rotary knob gives you quick, precise control. Stream music wirelessly from your phone or plug in through the auxiliary input for a direct connection—either way, your ride just got way better.

Speakers to Fit Your Cage
With this kit, you get two or four 6.5” weather-resistant speaker pods. They’re impact resistant and have integrated RGB lighting for maximum head-turning potential. Thanks to adjustable clamps that mount easily to 1.75”, 1.85”, or 2” bars, you’ll be ready to set the ride’s soundtrack without working too hard to install it.

Speaker Specs
Speaker Size	6.5", 2-Way
Sensitivity	86dB
Impedance	86dB
Frequency Response	70Hz-20kHz
Dimensions	9.34" x 7.09" x 8.76"

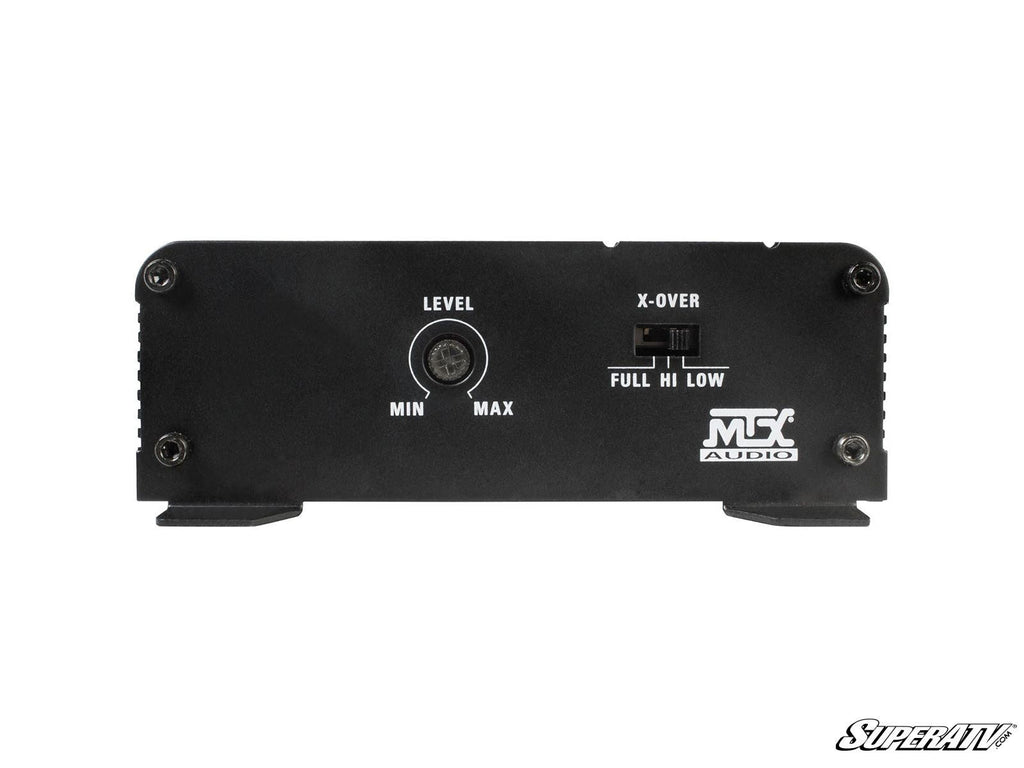

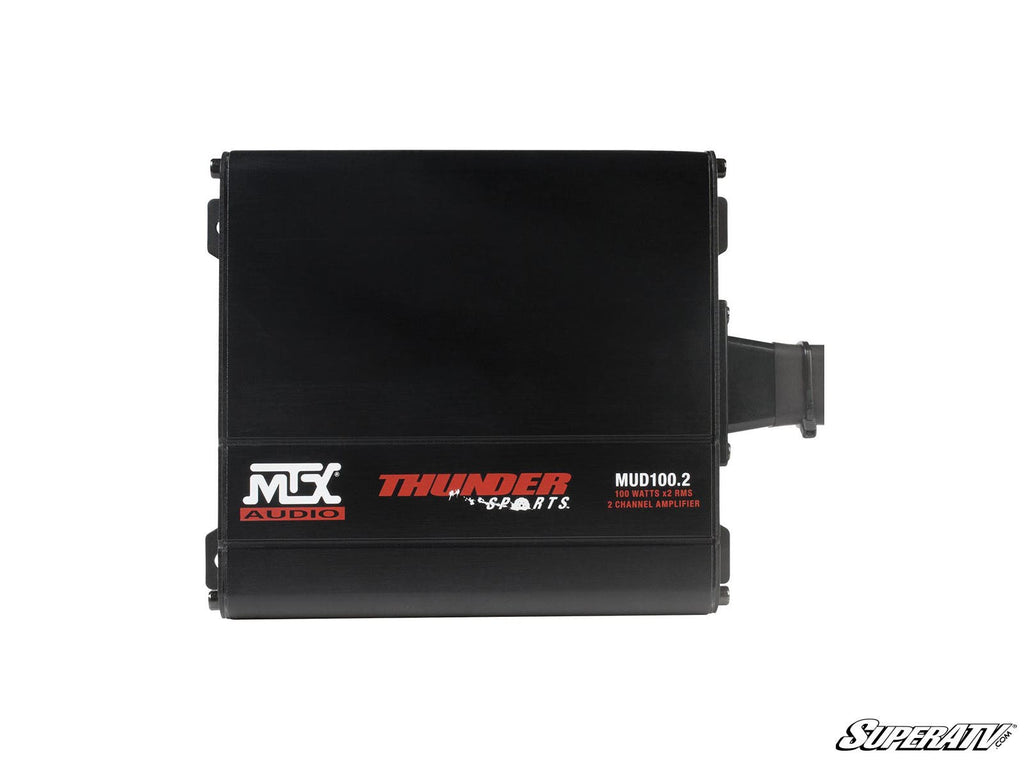

Small But Mighty Amplifier
This kit comes with MTX’s MUD100-2 amplifier. It’s small, but it packs a major punch in the sound department! That small size makes it more convenient for mounting on smaller machines and it’s corrosion and weather-resistant for maximum longevity. And 200 watts RMS power is enough to run these speaker pods and then some.

Amplifier Specs
Description	2-Channel
Sensitivity	86dB
4Ω RMS Power Output	50W x 2 Channels
2Ω RMS Power Output	100W x 2 Channels
Topology	Full Range Class D
THD	<1.0%
Frequency Response	20Hz - 20kHz
Crossover	Fixed HPF/LPF @ 80Hz, 12dB/Oct
Max Sensitivity	200mV
Maximum Input Signal	5V
Dimensions	4.65" x 5.71" x 1.61"

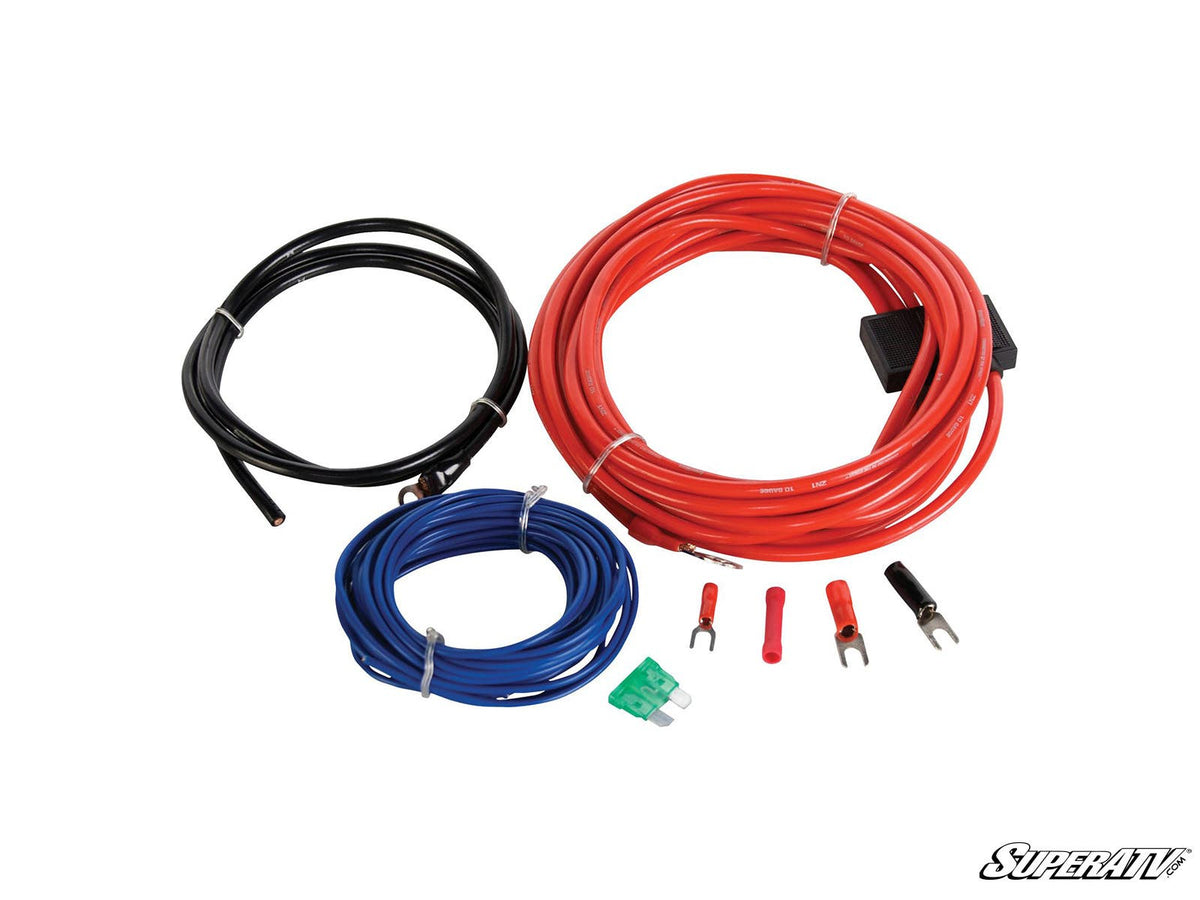

All the Wires and Cables You Need
MTX includes all the wiring you need to get your speaker pods up and running. You get a power kit to connect the amp to the battery, a stereo cable connector from your source to the amp, and 18 gauge speaker wires.

Wiring Kit Includes

• 3m (9.8') 10 AWG Red Power Cable with ATC Fuse Holder
• 3m (9.8') 10 AWG Black Ground Cable
• 3m (9.8') 22 AWG Remote Wire
• 10 AWG Ringer Terminal 5/16”
• 10 AWG Ring Terminal 3/16”
• (2) 10 AWG Spade Connectors
• 18 AWG Red Butt Connector
• 30A ATC Fuse
